HCET 3MP 2MP Motor Thermal Protector 250V 20A Overload Cutout Switch For Conveyor Systems

  • 1
  • 2
  • 3

Brand Name : HCET

Model Number : 3MP

Certification : ROHS

Place of Origin : China

MOQ : 1000

Price : please contact us

Payment Terms : T/T

Supply Ability : 10000000 pcs per month

Delivery Time : 5-7 work days

Packaging Details : 20000 pcs per carton

Product name : 3MP motor thermal protector

Material : Metal case

Temperature range : 30~180℃

Tolerance : ±8℃,±5℃

Voltage : 30V DC / 250V AC

Current : Customizable

Application : Conveyor systems

Contact Now

HCET 3MP/2MP Motor Thermal Protector 250V 20A (30-180℃) Overload Cutout Switch for Conveyor systems

A precision-engineered solution for safeguarding motors against overheating and overload damage. Designed as a high-performance alternative to SENSATA KLIXON, this protector ensures operational safety across residential and industrial applications.

Product feature:

  • Dual Reset Modes
    - Auto - Reset (Standard) / Manual - Reset (Optional) for flexible fault recovery
    - Power - off reset ensures complete system safety
  • Precision Protection
    - Trip Current Range: 1 - 45A (±5% tolerance)
    - Temperature Accuracy: ±5℃ (Customizable up to ±10℃)
    - Fast Response: 4 - 10s trip time prevents motor burnout
  • Robust Construction
    - 250V AC/30V DC Rating (Max 45A)
    - -40℃ to 180℃ operational range
  • Universal Compatibility
    - Coil - mounted or external installation options
    - Compatible with:
    Washing Machines & Dryers
    Power Tools (Drills, Sanders)
    HVAC Systems & Pumps
    Battery - Powered Devices

Electrical Characteristics:

30℃~180℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±5°C, ±8℃
Temperature Tolerance		 1A~45A
The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics

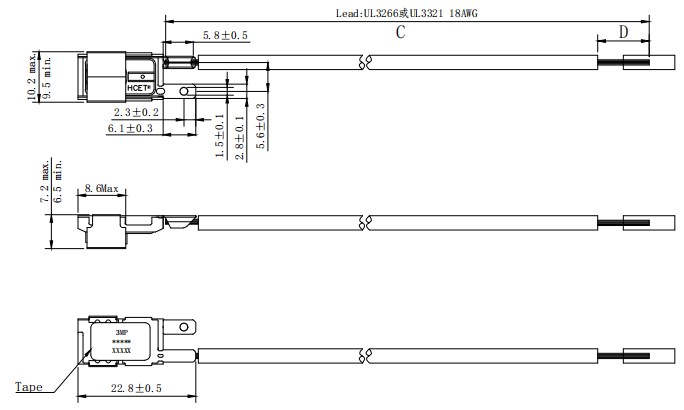

Dimension size

HCET 3MP 2MP Motor Thermal Protector 250V 20A Overload Cutout Switch For Conveyor Systems

Product detail

HCET 3MP 2MP Motor Thermal Protector 250V 20A Overload Cutout Switch For Conveyor Systems

Application

HCET 3MP 2MP Motor Thermal Protector 250V 20A Overload Cutout Switch For Conveyor Systems
