IP67 Rated 12V Bimetallic Thermostat Switch Thermal Cutoff ODM

Name: IP67 Rated 12V Bimetallic Thermostat Switch Thermal Cutoff ODM
Brand: HCET
Price: 1 USD

Quality IP67 Rated 12V Bimetallic Thermostat Switch Thermal Cutoff ODM for sale

Brand Name : HCET

Model Number : HCET-C

Certification : CQC, UL, TUV, CE, ROHS

Place of Origin : China

MOQ : 1000

Price : please contact us

Payment Terms : T/T

Supply Ability : 10000000 pcs per month

Delivery Time : 5-7 work days

Packaging Details : 3000 pcs per carton

Product name : HCET-C thermal switch thermostat

Material : plastic case

Temperature range : 20℃~180C

Tolerance : ±3℃,±5℃

Voltage : 250V

Current : 10A

Service life : 100k times

Application : Car Seat

Contact Now

HCET-C Bimetal Thermostat with Thermal Cutoff 10-180°C Dual Protection Temperature Control Switch for Car Seat

The HCET-C Series Bimetal Thermostat is a revolutionary dual-protection device integrating a snap-action thermal switch and fail-safe thermal cutoff. Engineered for precision temperature control between 10°C to 180°C (±3℃ tolerance), this compact waterproof solution ensures ultimate safety in heating systems by combining overcurrent protection with overtemperature cutoff.

Product feature:

Military-Grade Safety
Dual-circuit design (thermostat + fuse) eliminates single-point failure risks for automotive and medical applications.
Smart Power Management
Current-sensitive bimetal disc automatically adjusts switching cycles (100,000+ operations) to prevent contact welding under 10A/250VAC loads.
Environmentally Sealed
IP67-rated epoxy housing resists moisture ingress in pet heating pads and outdoor vehicle seat applications.
Cross-Industry Compatibility
Automotive: Seat warmers, battery thermal management
Home Appliances: Electric blankets, coffee makers
Industrial: HVAC systems, motor protection

Electrical Characteristics:

20℃~180℃

Temperature Range(Customizable temperature, please contact us.)

±3℃ ±5℃

Temperature Tolerance

10amps/24V DC

16amps/250V AC 20amps/125V AC

Electrical Specifications

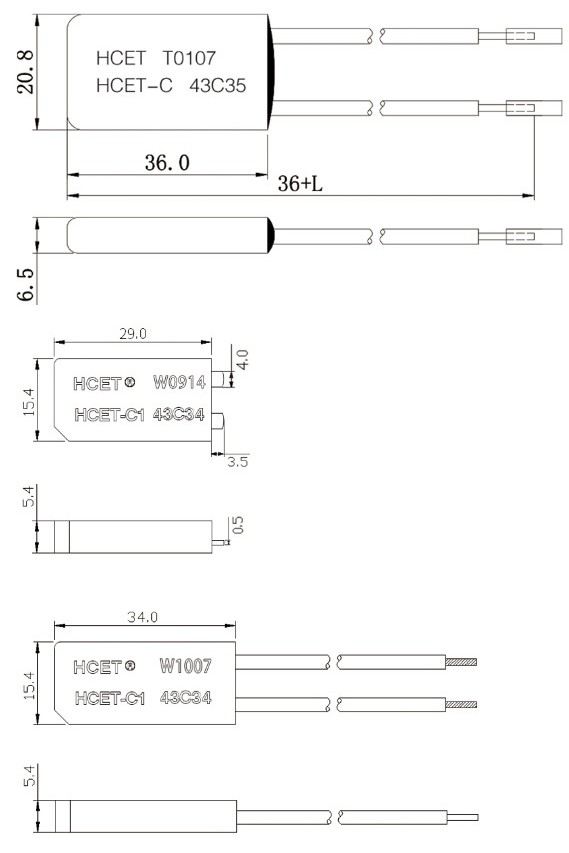

Dimension size

IP67 Rated 12V Bimetallic Thermostat Switch Thermal Cutoff ODM

Product detail

IP67 Rated 12V Bimetallic Thermostat Switch Thermal Cutoff ODM

Application

IP67 Rated 12V Bimetallic Thermostat Switch Thermal Cutoff ODM
